Cloud Connector Conciderations when planning for deployment

Migrosoft Cloud Connector "Edition" / CCE is soon available for general release.
There are som considerations when planning to use  the CCE.

The short short version:

• Each CCE consist of 4 VM's. Edge, Mediatiom, FrontEnd and domain controller for CCE.
• These VM's are pre packaged and only need a few lines of configurations.
• A limit of maksimum of 4 CCE's pr SITE in the topology.
• A maximum of 500 siultaneous calls. 501 calls = additional CCE.
• Each CCD can connect to several PSTN providers.
• When hosted a maximum of 70% of user can connect externally.
• You cannot integrate third party systems like Contact Centers / switchboard systems with CCE.
• You cannot integrate with existing PBX.

A typical deployment would look like this:

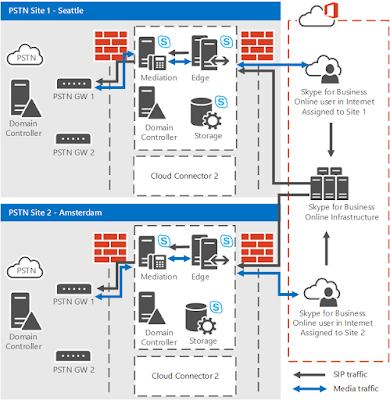

Multiple CCEs in a deployment:
